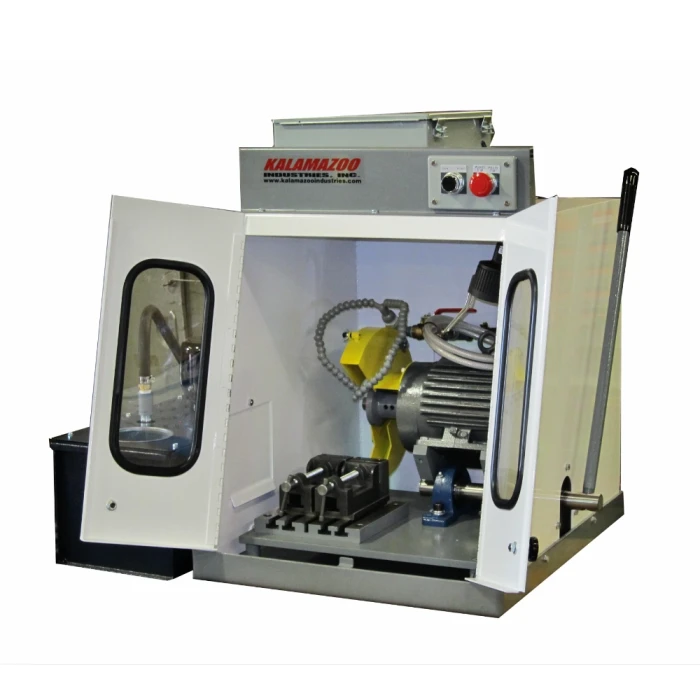

K10WBT 10 INCH ENCLOSED METALLURGICAL SECTIONING SAW

$6,350.00

K10WBT 10 INCH ENCLOSED METALLURGICAL SECTIONING SAW

The K10WBT features a powerful 2HP 3PH, 3450 RPM motor, 5/8th spindle arbor, pump and tank system, 24V on/off controls, dual 3″ tool makers vises mounted on a t-slot table and single left side access port.

Kalamazoo Industries K10WBT 10 inch enclosed bench top metallurgical saw is a great compact enclosed metallurgical sectioning saw for cutting coupons, weld tests and other metallurgical cuts!

This 10 inch wet saw gives bright clean metallurgical cuts for metallurgical samples with the right cutoff wheel.

Robust construction, simple manual operation!

CALL FOR AVAILABILITY!

K10WBT 10 INCH ENCLOSED BENCH TOP METALLURGICAL SAW, Kalamazoo, inspection, metallurgy, inspection
This item: K10WBT 10 INCH ENCLOSED METALLURGICAL SECTIONING SAW
$6,350.00
$6,350.00
292-047 10 INCH METALLURGICAL SAW SPINDLE AND FLANGE
Spindle Arbor Size
$150.00
$16.00
$120.00

Description

K10WBT 10 INCH ENCLOSED METALLURGICAL SECTIONING SAW SPECIFICATIONS

  • Magnetic controls.
  • 24V at on/off push/pull buttons.
  • Dual 3” tool makers vises.
  • 2Hp TEFC Motor, 3Ph, 220 or 440 volt (please specify voltage at time of order).
  • 3PH FLA: 220V 5.2 amps and 440V 2.6 amps
  • Pump FLA 115V 2.4 amps
  • Capacity: 1.5” solids, 2.5” pipe.
  • Internal lite.
  • All steel construction
  • 6 gallon coolant tank & pump.
  • Adjustable dual coolant with flare nozzles.
  • Wash down hose.
  • 5/8″ LH spindle arbor, optional: 1.250” or 32mm.
  • T-Slot Table. Slot 9/16″ x 1″ x 5/8″ deep.

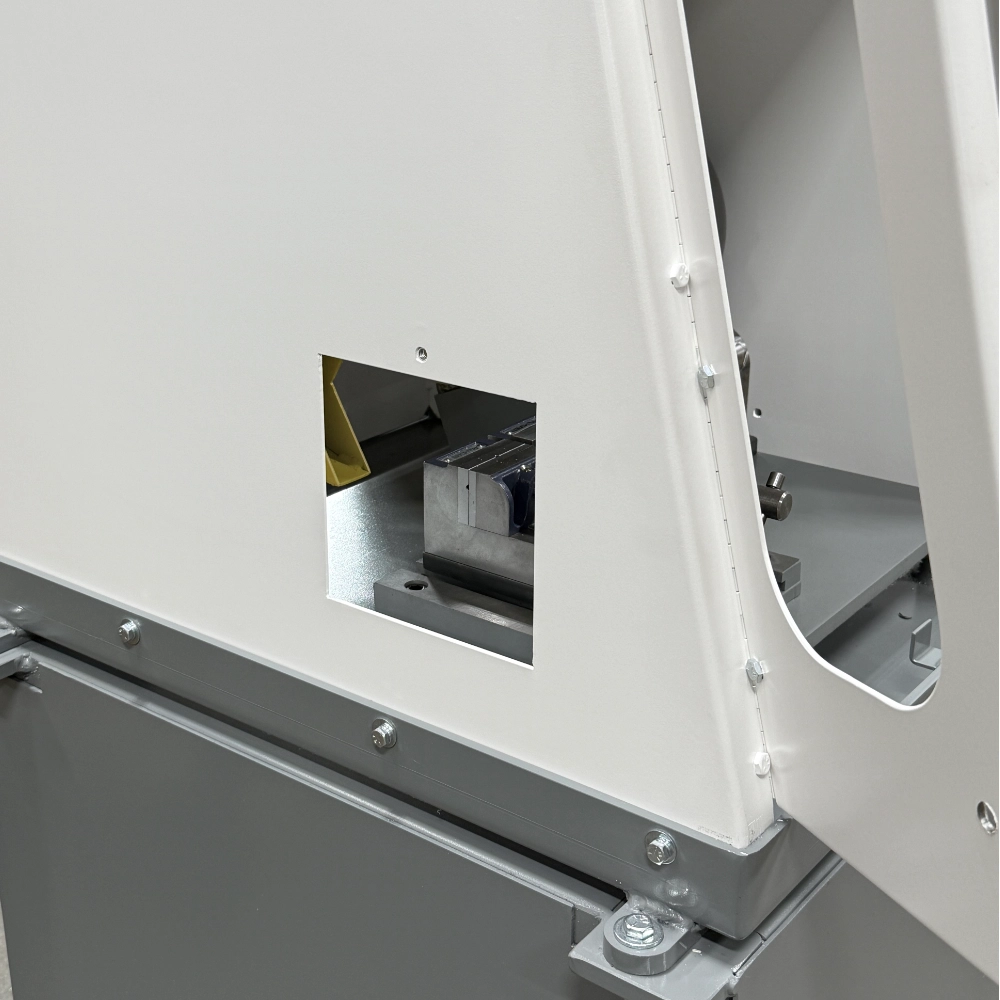

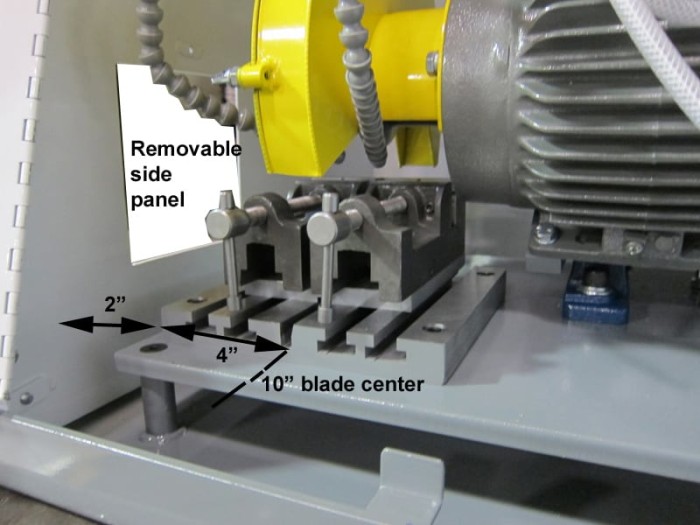

  • Removable  5″ LEFT side access panel for long parts. ( will not allow bar to pass thru other side of cabinet).
  • 10″ Diameter abrasive blade (not included).
  • Capacities: 1.5″ solids, 2.5″ pipe.
  • Optional: 50 hz 380 volt.
  • Machine dimensions:  L 24″ x W 24″ x H 24″.
  • Shipping dimensions:  L 33″ x W 46″ x H 39″.
  • Shipping weight without stand: 460 lbs
  • Weight with stand: 700 lbs
  • Made in USA!

10 INCH CLOSED METALLURGICAL SAW’S PURPOSE

The K10WBT is designed to run wet to keep the material from burning and for cutting steel and other ferrous metals for material and other forms of work inspection.

K10WBT 10 INCH ENCLOSED METALLURGICAL SECTIONING SAW REPLACEMENT PARTS

All parts that Kalamazoo Industries manufacture’s for the K10WBT 10 inch industrial abrasive metallurgical wet steel saw and manufactured here in Kalamazoo Michigan are replaceable no matter the age of this unit.  All parts are kept in stock.

WHERE CAN K10WBT 10 INCH ENCLOSED BENCH TOP METALLURGICAL SAW BE USED

The K10WBT 10 inch industrial metallurgical heavy duty wet steel cutting saw is used in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
