S8D 8 X 60 INCH INDUSTRIAL SANDER
The S8D 8 x 60 inch industrial belt sander is a robust and high-performance machine engineered to excel across a wide spectrum of sanding tasks. With a commanding 7.5HP motor propelling a belt operating at a remarkable 3500 SFPM, this sander effortlessly tackles substantial material removal tasks with speed and precision. In addition to its formidable power, the sander boasts versatility-enhancing features such as a reversible platen and adjustable tracking, further solidifying its status as an indispensable tool in the professional’s arsenal.
S8D 8 X 60 INCH INDUSTRIAL SANDER SPECIFICATIONS
- 7-1/2HP 3PH 230V and or 440V motor (specify voltage at the time of the order)
- Motor RPM 1725
- Belt speed: 3500 SFPM
- Belt Size: 8″ x 60″
- Heavy-duty steel stand
- Heavy-duty steel sander frame
- Idler pulley with sealed bearings
- Twin V-belt driven
- Removable v-belt belt guard
- Magnetic controls
- 24V at on/off switch with jog button
- Air sanding belt tension (40-50 psi required)
- Sealed ball bearings
- One knob belt tracking
- Replaceable and reversible steel platen. Work area 8″ x 13″
- Adjustable platen leveling pins
- Adjustable 8″x 12″ cast iron table and a 5/8″ slot for the mitre gauge.
- Machine shipping weight: 750 lbs.
- Machine shipping dimensions: L 38″ x W 38″ x H 74″
THIS PRODUCTION SANDER DOES THE FOLLOWING
- Bevel
- Deburr
- Square-up ends
- Round, flat corners
- Flattening metal
- Polishing
- Clean up work
- Shaping
- Sharpen
- Smoothing
- Heavy metal removal
SUGGESTED OPTIONS
- KB86050 8″ X 60″ 50 grit aluminum oxide sanding belt
- KB86080 8″ x 60″ 80 grit aluminum oxide sanding belt
- KB860100 8″ x 60″ 100 grit aluminum oxide sanding belt
REPLACEMENT PARTS TO KEEP ON THE SHELF

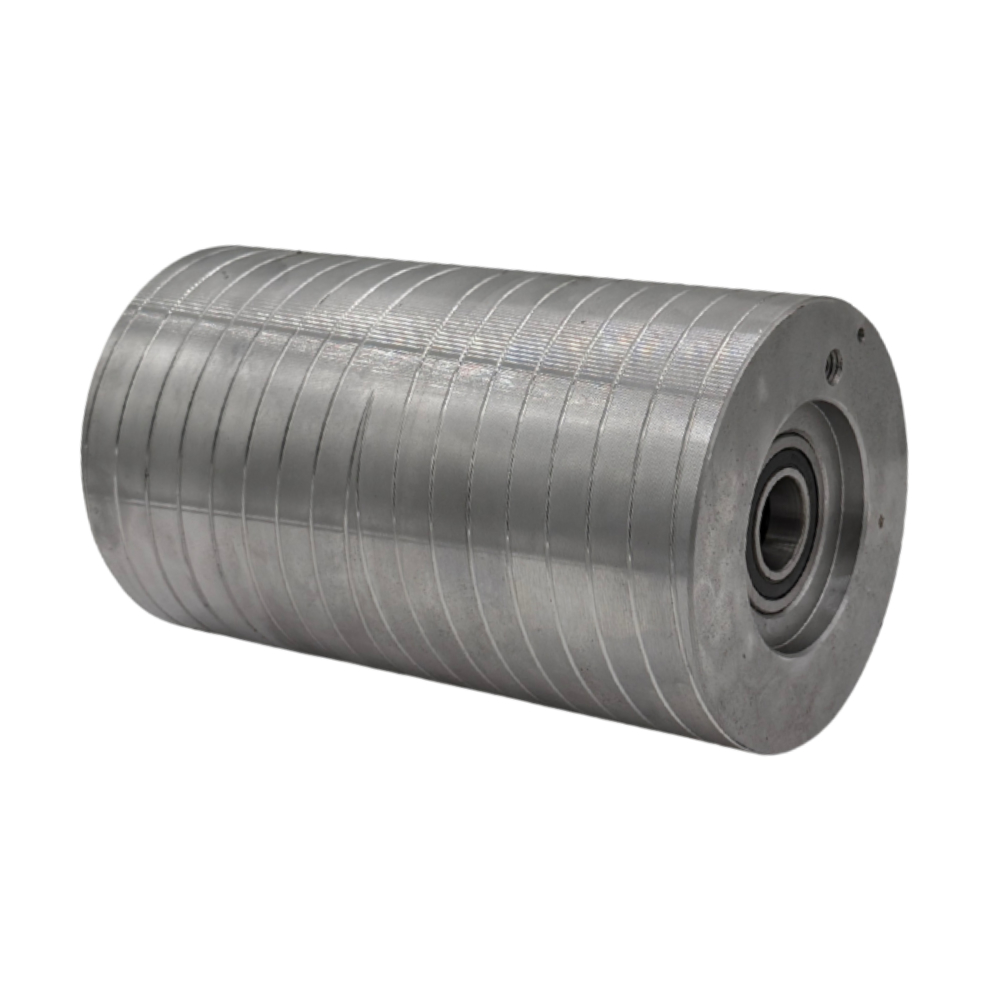

- 560-024 idler pulley with sealed bearings
- KB86050 8″ x 60″ 50 grit sanding belt
- KB86080 8″ x 60″ 80 grit sanding belt
- KB86010 8″ x 60″ 100 grit sanding belt
- 051-011 replacement v-belt
- 131-020 belt tension cylinder
- 560-023 drive pulley
S8D 8 X 60 INCH INDUSTRIAL BELT SANDER REPLACEMENT PARTS
Parts are available to buy and in stock for the S8D 8 x 60 inch production belt sander at the factory in Kalamazoo, Michigan. Click here to buy your replacement parts for this belt sanders page.
