K12-14MS Metallurgical Sectioning Saw
Order Now
The K12-14MS metallurgical cutoff saw is designed for shops and labs that need accurate metal samples for testing and evaluation. It is commonly used anywhere clean, controlled cuts are required before inspection or processing. With simple operation and dependable performance, this saw fits well into daily lab and production workflows.
Common applications include:
-
Preparing metal samples for metallurgical testing and inspection
-
Sectioning parts before and after heat treatment
-
Cutting samples for lab-based materials analysis
-
Supporting in-house and contract heat treating services
-
Removing sections from failed parts for failure analysis
-
Sample preparation in quality control and inspection labs
-
Research, training, and production support environments
These applications make the K12-14MS a reliable choice for companies that need consistent sample preparation to support accurate testing, reporting, and process improvement.
Motor Specifications
- Motor: 5 HP 3 PH, 1750 RPM, 60 HZ, TEFC motor
- Full Load Amps (FLA) for 60Hz: 230V @ 13.4 amps, 460V @ 6.7 amps
Performance
- Spindle Speed: 2200 RPM
- Feed Mechanism: Semi-automatic air/oil power down feed
- Adjustable Feed Rate: 0-12 FPM with momentary rapid override for quick approach
Cutting Capacity
- Wheel Size: 14 inches cutting disc (blade not included)
- Spindle Arbor: 1 inch (optional 1.25″/32mm arbor available)
- Cutting Capacity: 2.5 inches for solids, 3 inches for shapes
Safety and Convenience Features
- Magnetic Switch: Includes low-voltage protection at the switch (24V)
- Internal Lighting: 24V internal halogen light
- Coolant System: Dual coolant nozzles with flood coolant (10 gal., 1/3 HP)
- Oscillation: Included for enhanced cutting efficiency
Construction and Design

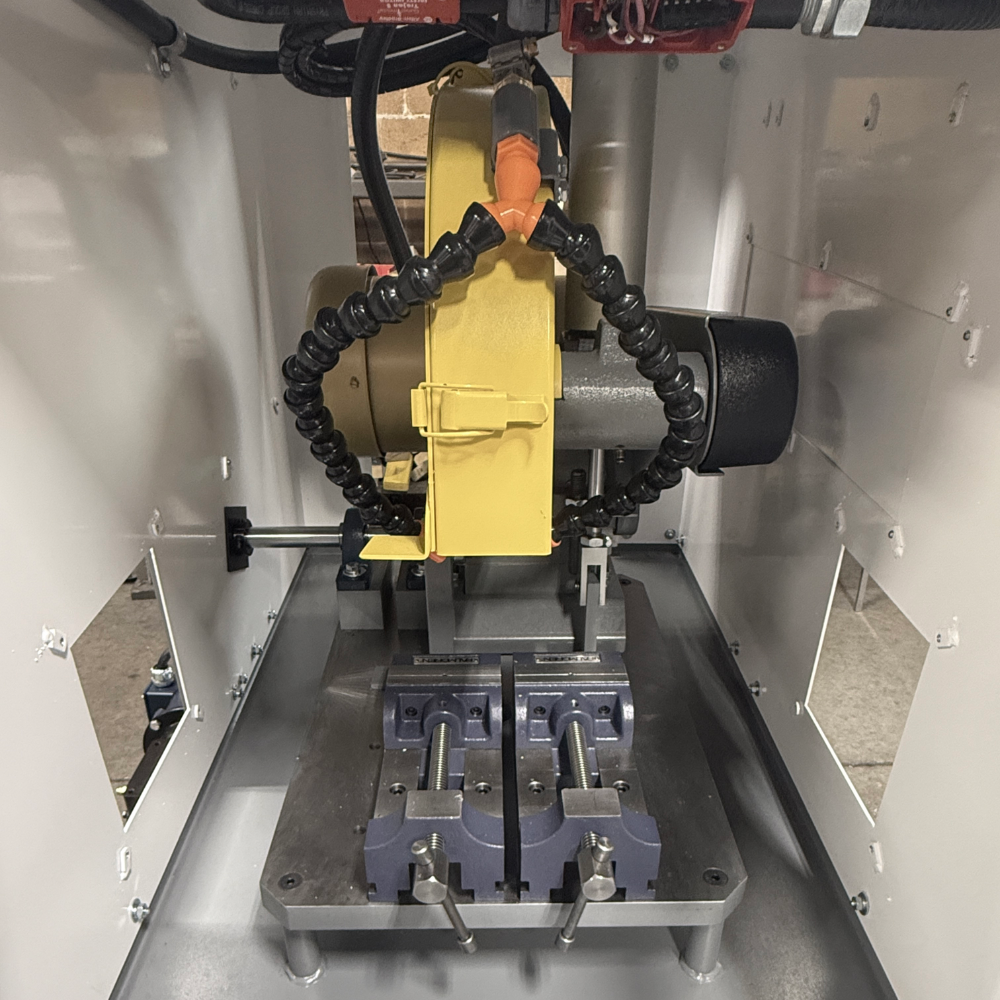

- Vises: Dual moveable 4-inch screw vises
- Enclosure: Steel enclosure with hinged doors
- Maintenance Access: Removable maintenance access panel at the rear of the enclosure
- Infeed and Outfeed Panels: Removable for ease of use
Dimensions and Weight
- Machine Dimensions: L 43″ x W 26″ x H 60″
- Shipping Weight: 1000 lbs.
- Shipping Dimensions: L 58″ x W 58″ x H 77″
- Shipping weight and dimensions are subject to change.
Additional Information
- Made in the USA
The K12-14MS metallurgical cutoff saw is used across many industries where accurate metal samples are critical. It is designed to support controlled, repeatable cuts that help teams prepare samples for testing, inspection, and documentation.
From production floors to lab environments, this saw fits smoothly into workflows that demand dependable results.
Common equipment applications include:
-
Preparing samples for metallurgical examination and lab testing
-
Cutting metal coupons before and after heat treatment
-
Sectioning parts for detailed materials analysis
-
Supporting in-house and commercial heat treating services
-
Removing test samples from bars, tubes, and forged parts
-
Assisting quality teams with root cause failure analysis
-
Routine sample prep for manufacturing, R&D, and inspection labs
These applications make the K12-14MS a practical and trusted solution for organizations that need consistent metal cutting to support testing accuracy and informed decision-making.
- KW1 – spindle wrench
- KC5 5′ gravity fed conveyor
- KCL – leg for KC5
- 1.25″ spindle bushing
- T-slot table
- Air jawed vises
- Door safety interlocks.
Additional Equipment Images and Accessories
Upgrade Your Shop with the K12-14MS Cutoff Saw
Ready to take your metallurgical cutting and sample prep work to the next level?
Call (269) 382-2050 or Request a Quote today.
Made in the USA | Built for Metallurgical Sample Prep | Proven in Heat Treat and QA Shops
